Gen4 SFF-8654 Adapter, dual ports SFF-8654 8i to PCIe 4.0 X16 slot, without bracket, application for link with NVMe SSD. NOT SUPPORT SAS SSD.
● It does not support SAS or SATA SSD.
● Motherboards and BIOS MUST support bifurcation otherwise only first drive can be recognized.

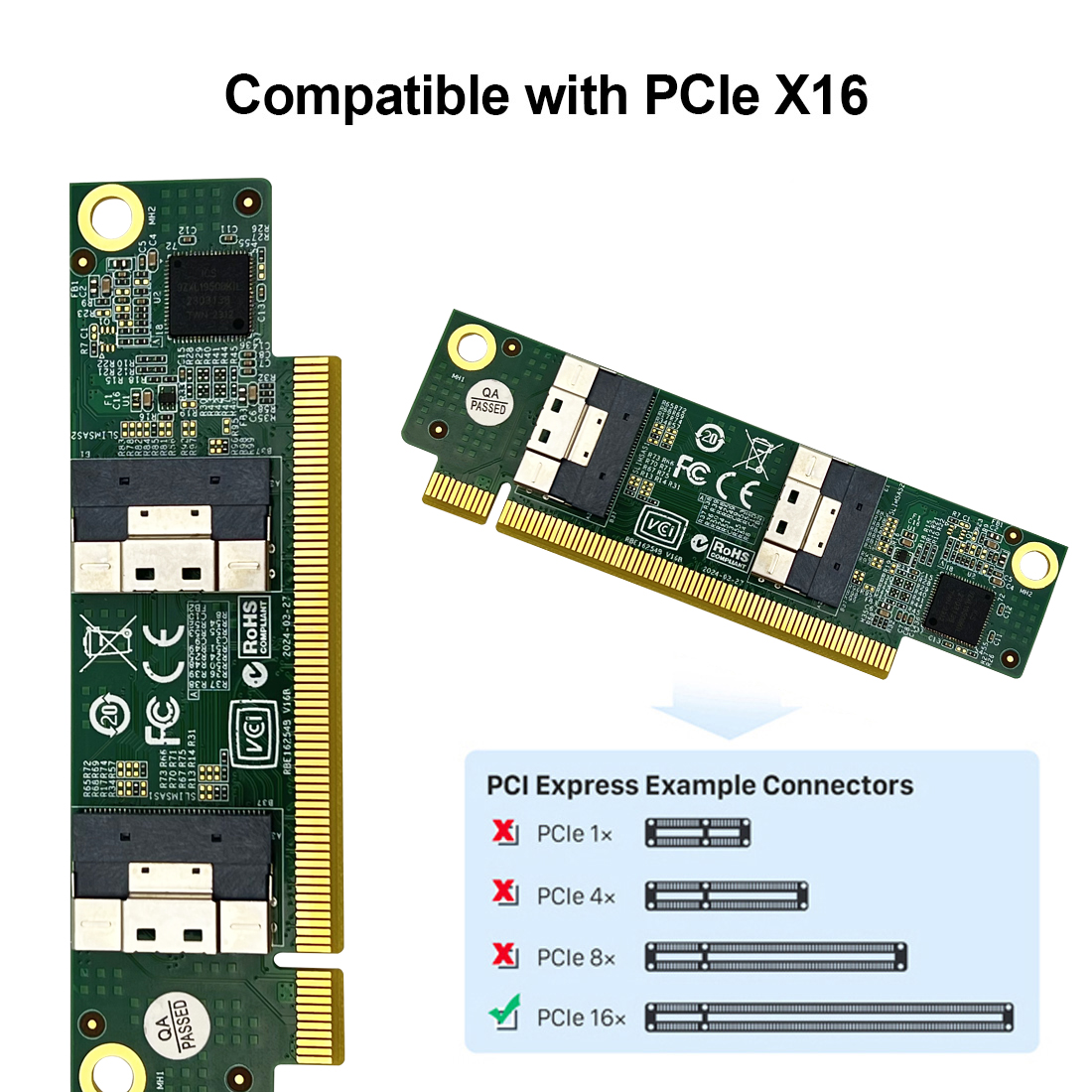

● Supports PCIe 16x (with 2 cables) or 8x (with 1 cable), and also support
motherboard splitting functions: x4x4x4x4, x8x8.

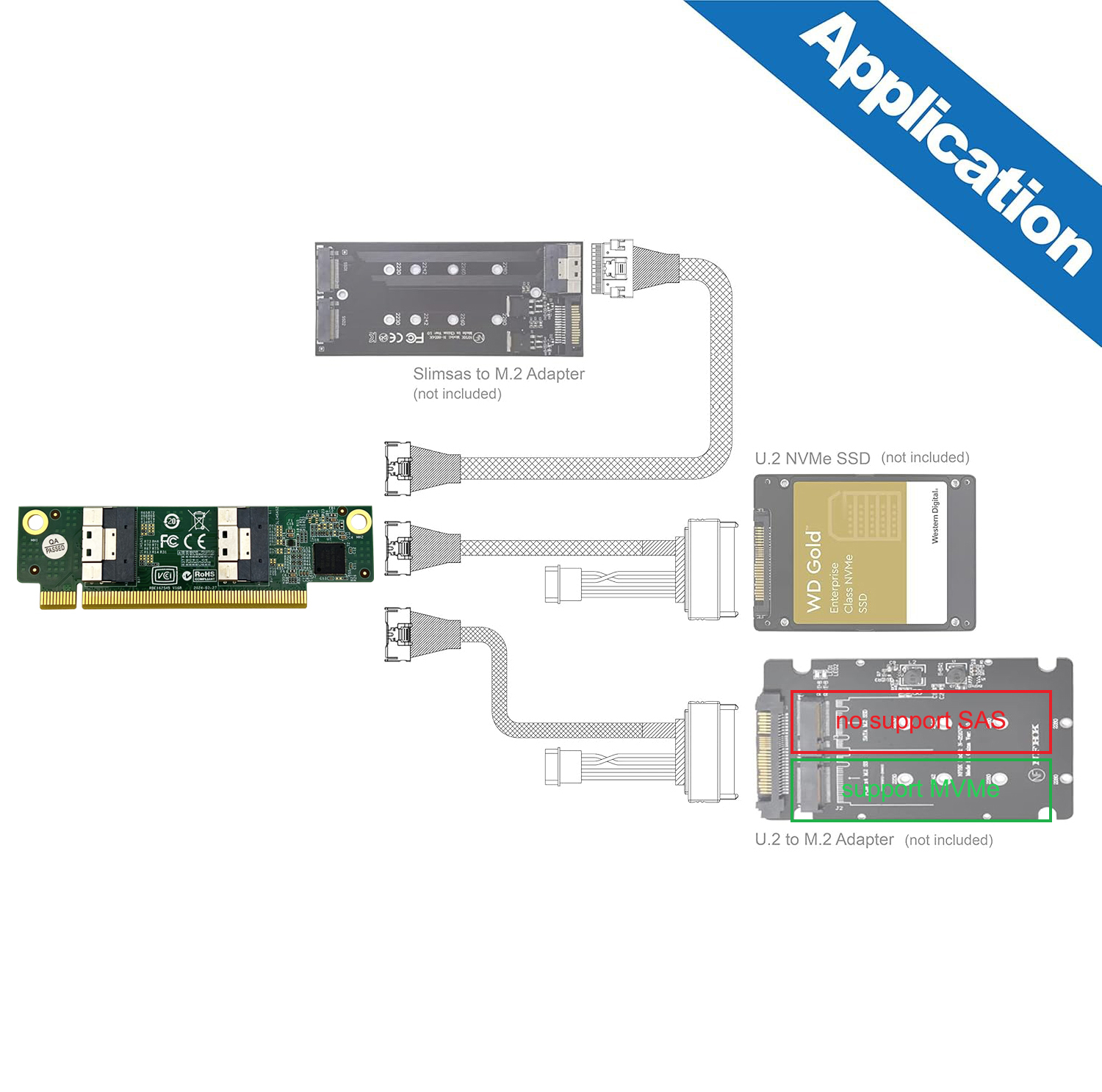

● Supports 1U chassis structure, meeting the needs of more compact systems and 1U server scenarios.this version is designed for users who need to set up external devices, allowing flexible configuration of dual GPUs or NVMe disk enclosures.
● PCI Express 4.0 Compatible with PCIe 3.0.
● Motherboards and BIOS MUST support bifurcation otherwise only first drive can be recognized.
● Supports PCIe 16x (with 2 cables) or 8x (with 1 cable), and also support
motherboard splitting functions: x4x4x4x4, x8x8.
● Supports 1U chassis structure, meeting the needs of more compact systems and 1U server scenarios.this version is designed for users who need to set up external devices, allowing flexible configuration of dual GPUs or NVMe disk enclosures.
● PCI Express 4.0 Compatible with PCIe 3.0.
