PCIe to SlimSAS (SFF-8654) Adapter, (4x) PCIe 4.0 X16 slot, (2x) SFF-8654 8i port Down, (2x) SFF-8654 8i port Up, Integration Broadcom PEX88096 Switch chip, Applicable to Windows Server/Windows/Linux/VMwareESX/ESXi/FreeBSD14/Ubuntu system

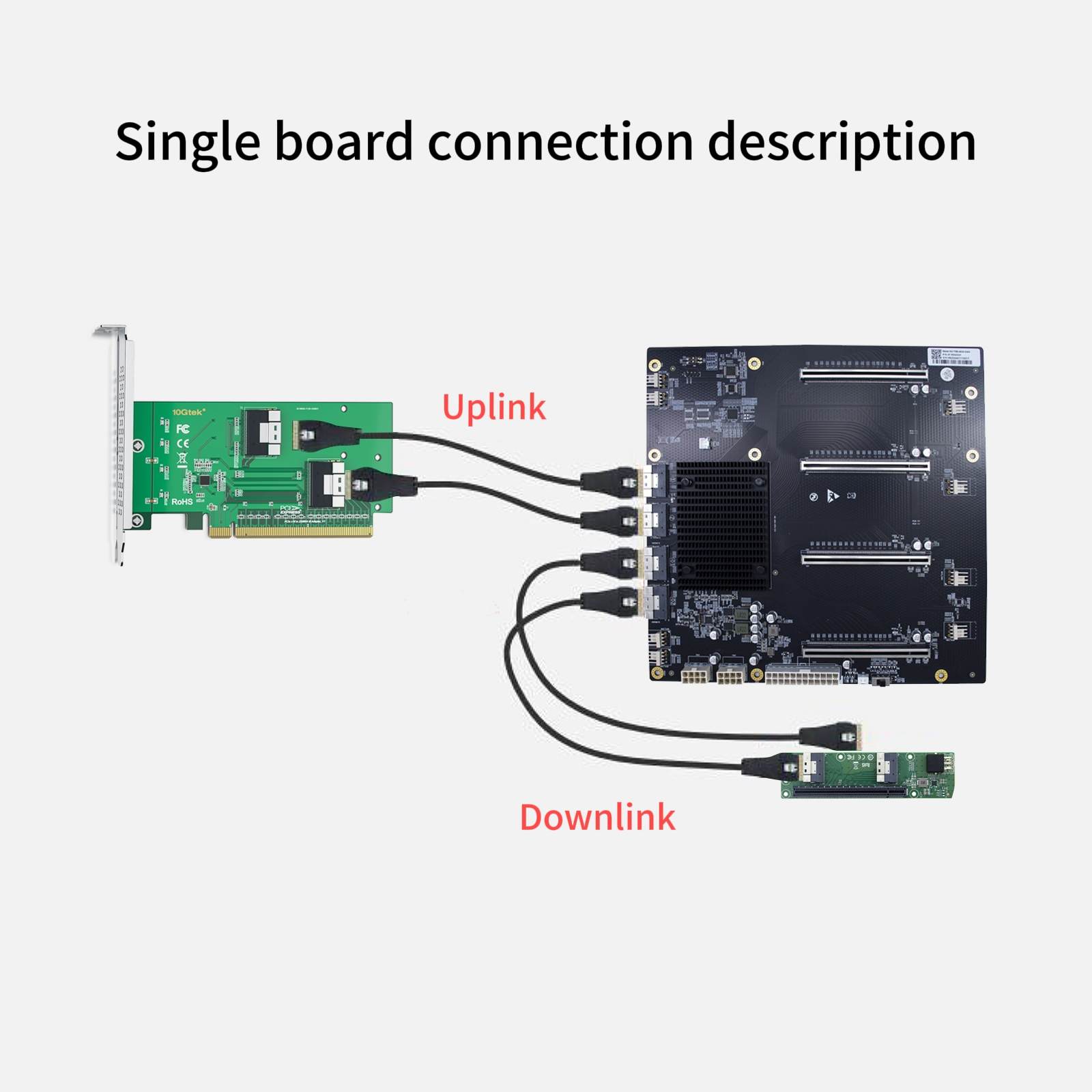

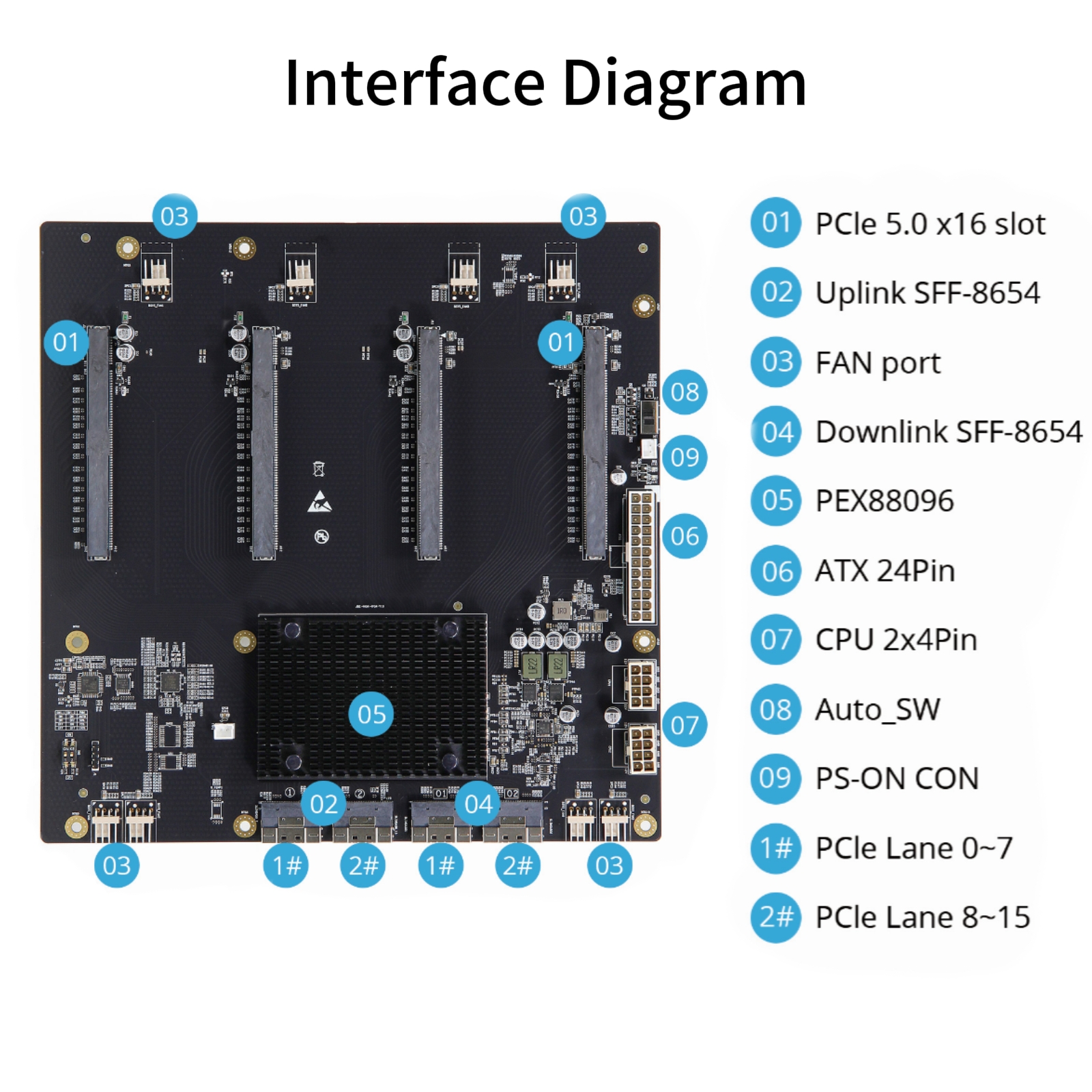

● 4-Port SFF-8654 8i interfaces: Two ports for uplink (expansion card sends data), two ports for downlink (motherboard sends data).
● Provided four PCIe 4.0 x16 slots , can be inserted four GPUs.
● Integration Broadcom PEX88096 Switch chip. Embedded ARM Cortex R4 CPU.
● No driver required, plug and play. Applicable to Windows Server 2012/2016/2019/2022, Windows7/8/10/11, Linux, VNware ESX/ESXi 5/6/7, FreeBSD 11/12/13/14, Ubuntu 20/22 system, Not applicable to FreeBSD 15.0 system.
● Provided four PCIe 4.0 x16 slots , can be inserted four GPUs.
● Integration Broadcom PEX88096 Switch chip. Embedded ARM Cortex R4 CPU.
● No driver required, plug and play. Applicable to Windows Server 2012/2016/2019/2022, Windows7/8/10/11, Linux, VNware ESX/ESXi 5/6/7, FreeBSD 11/12/13/14, Ubuntu 20/22 system, Not applicable to FreeBSD 15.0 system.
