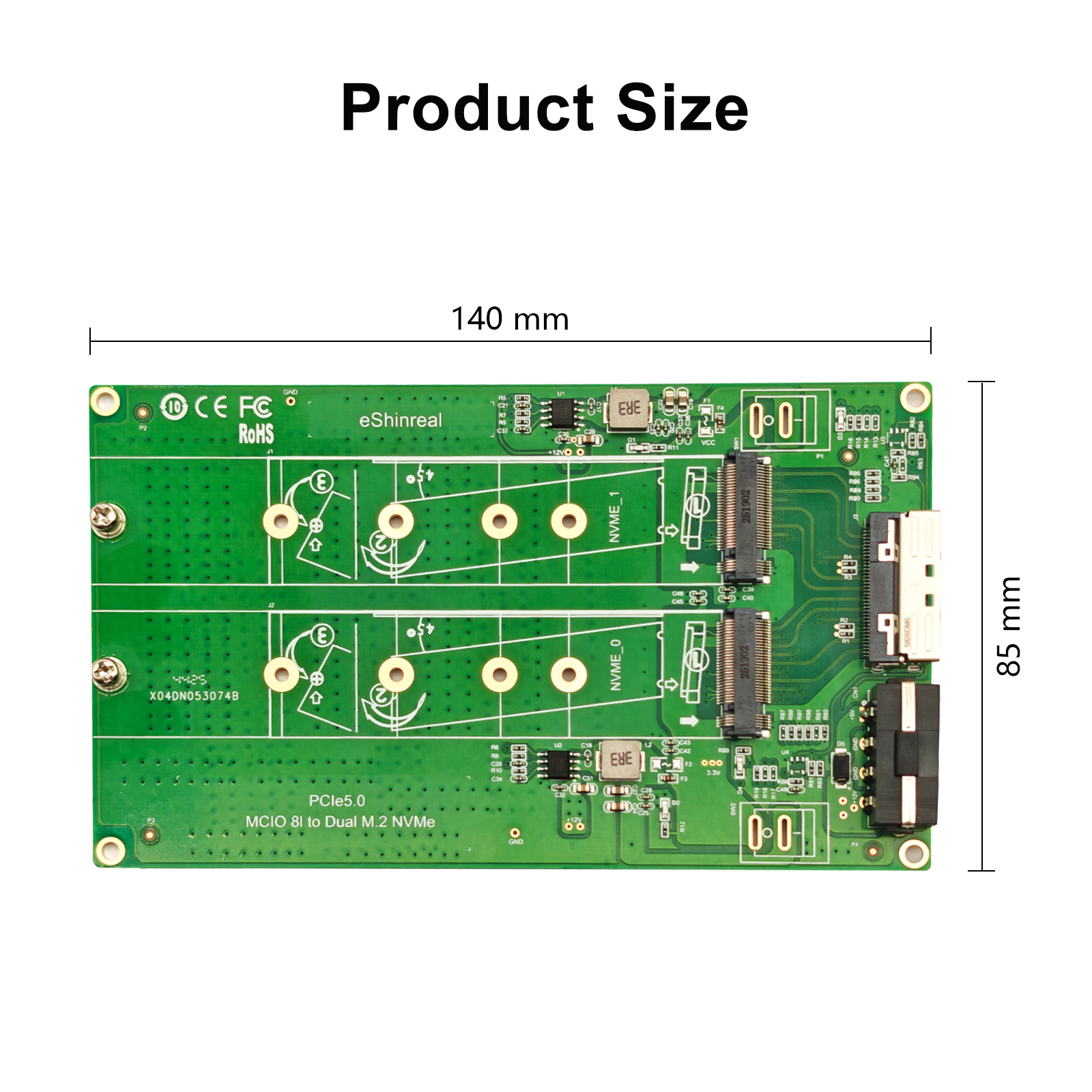

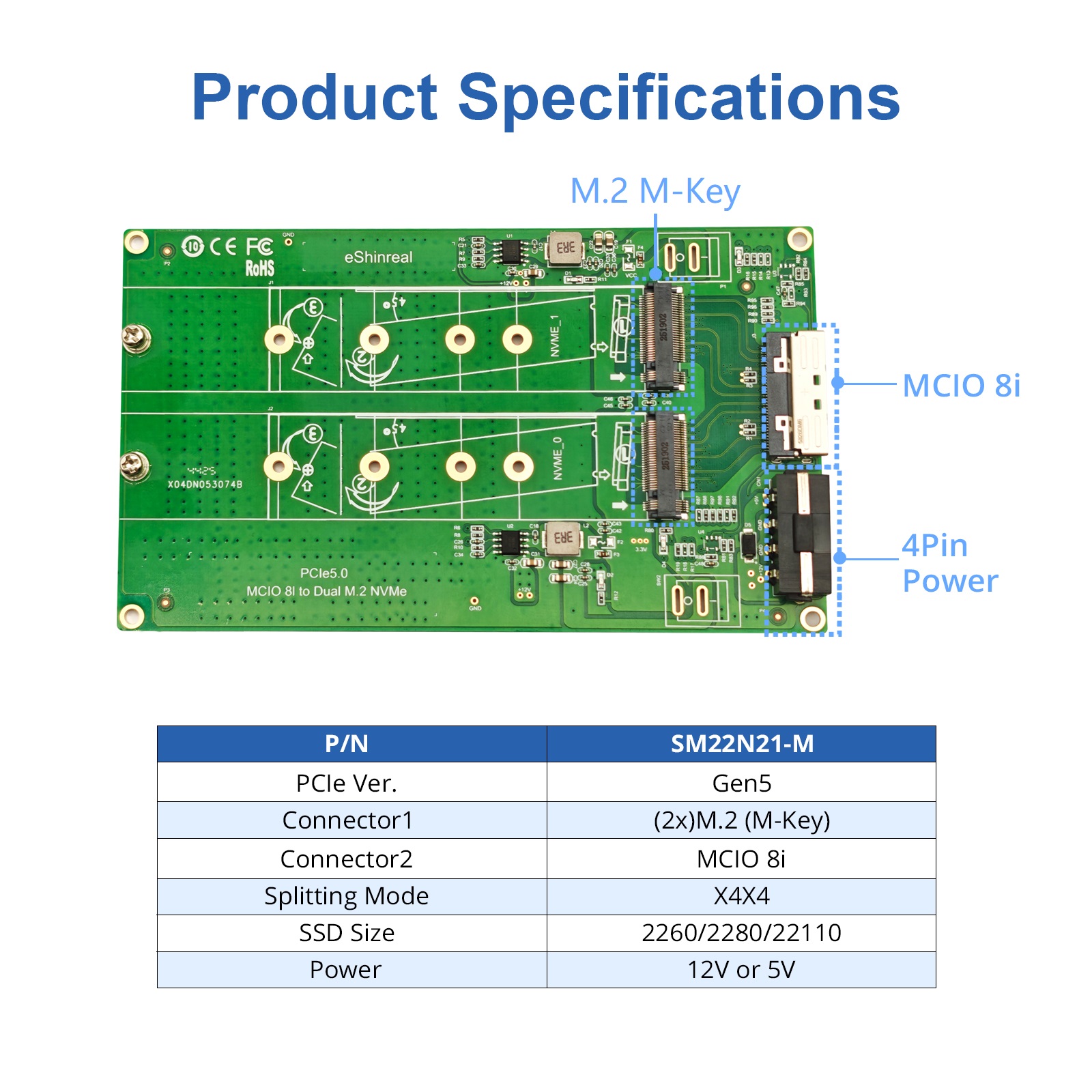

MCIO 8i to (2x) M.2 Gen5 Adapter, for NVMe SSD, Requires Motherboard BIOS Support for Bifurcation
● NOT support hardware RAID. NOT support HOT SWAPING!
● Support two Gen5 M.2 NVMe SSD. Motherboards and BIOS must support bifurcation. Otherwise, only first drive can be recognized.
● No driver required, plug and play. Applicable to Windows Server 2019/2022/2025, Windows10/11, Linux, VMware ESX/ESXi 7/8, FreeBSD 13/14/15, CentOS 8.5/9, Ubuntu 22/24/25 system.
● Equipped with a 4-pin power socket, requiring input of either 12V or 5V.
● Only working with M.2(M-Key) interface, NOT working with M.2(B-Key/B&M-Key) interface.

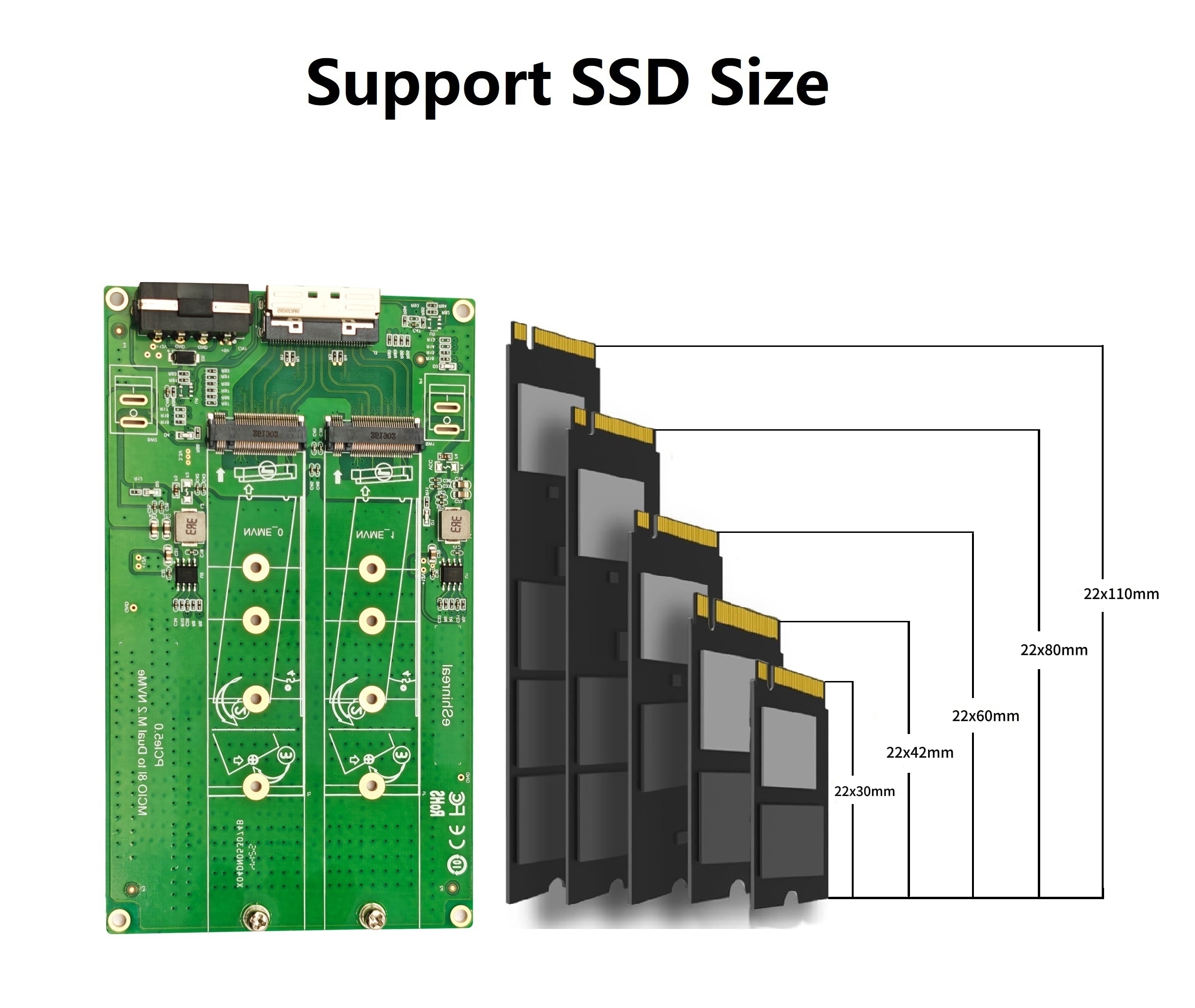

● SSD size : 22x110, 22x80, 22x60, 22x42, 22x30.
